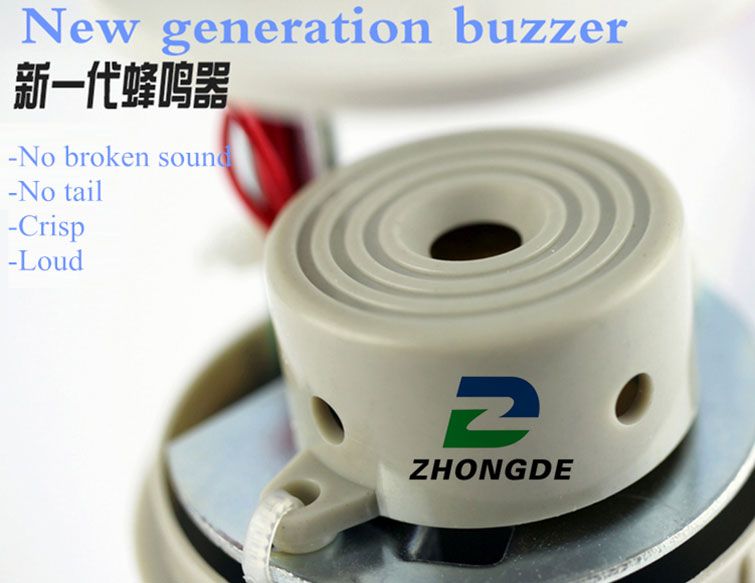

New generation buzzer

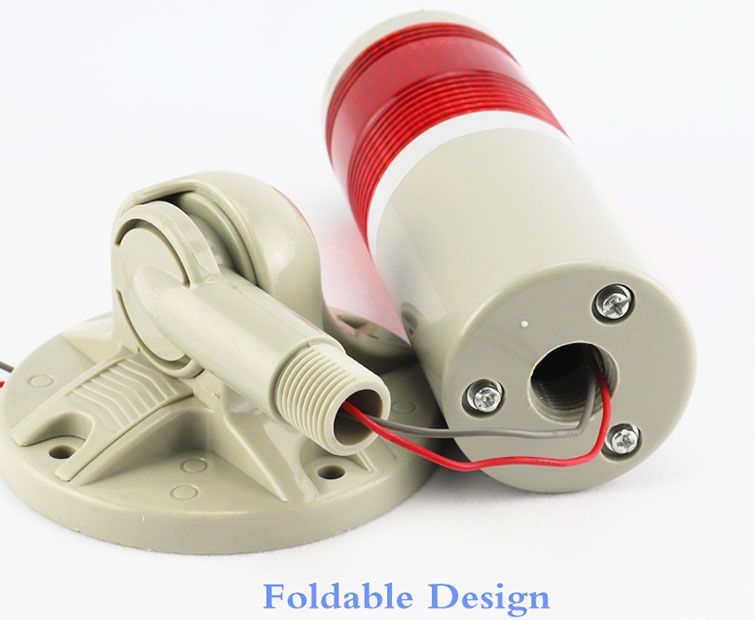

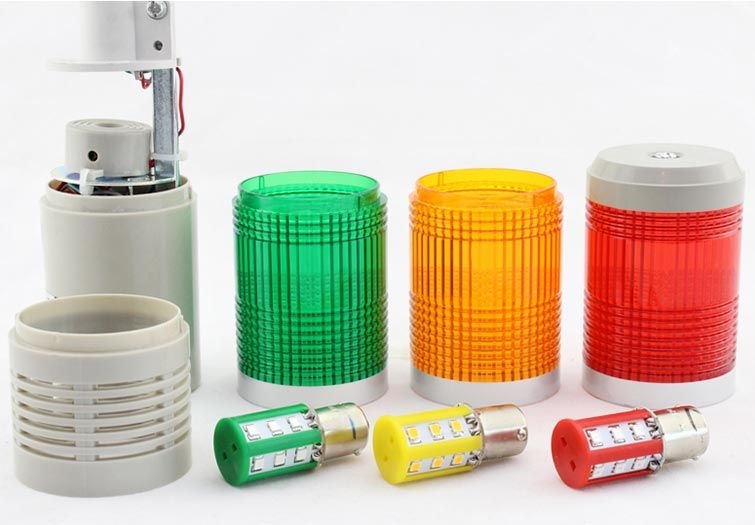

This series of warning lights diameter 50mm, medium size, for most equipment and power distribution equipment. With a variety of bases to meet a variety of installation conditions. The lamp bead lamp housing structure can be changed to meet various combinations for easy maintenance
product details
No broken sound
No tail
Crisp
Loud

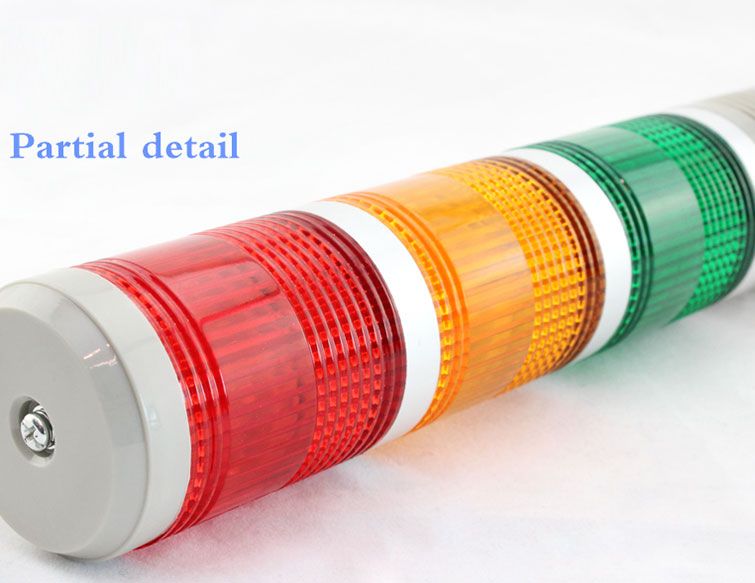

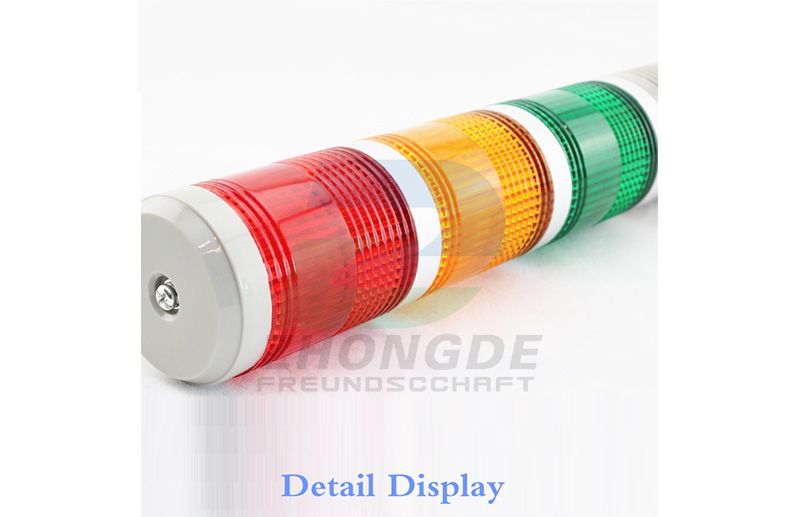

Partial detail

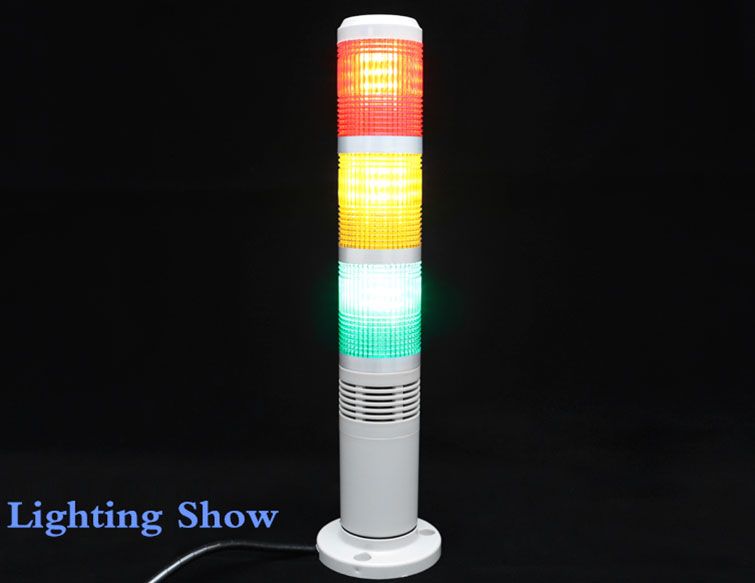

Lighting show

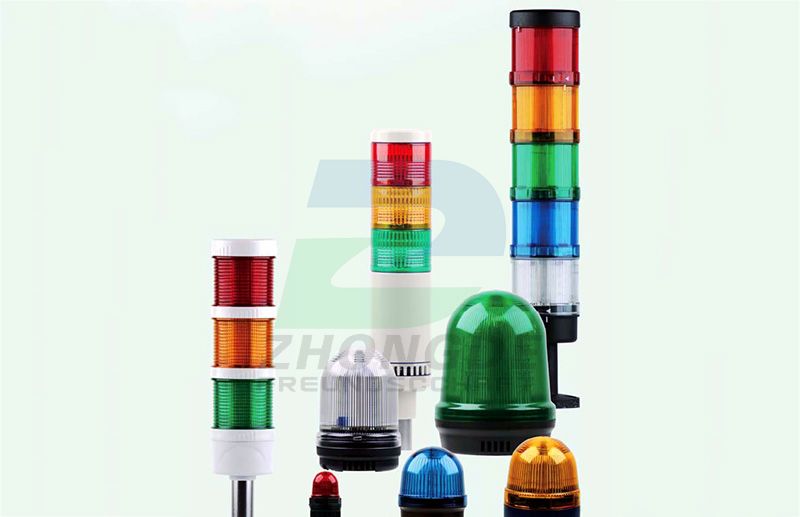

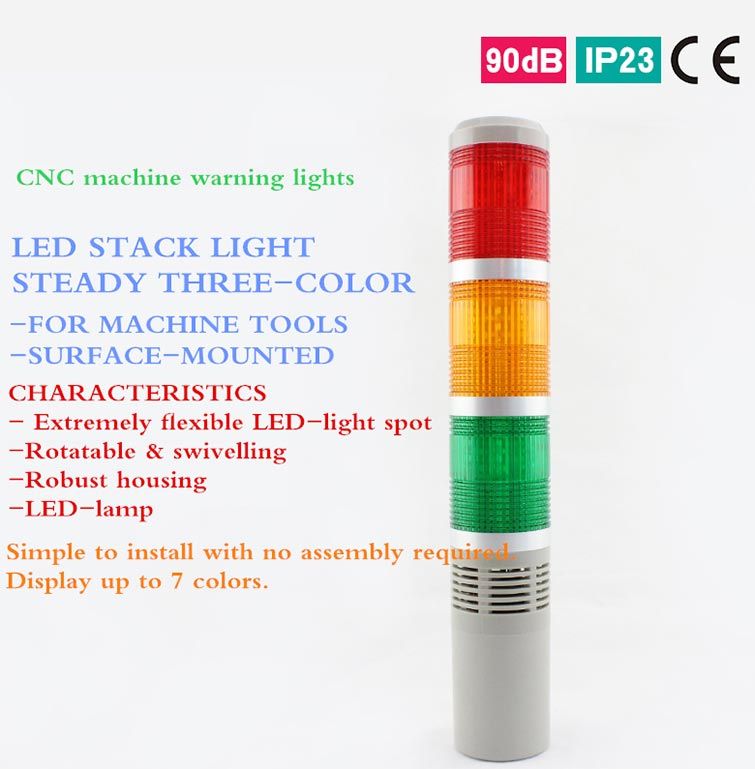

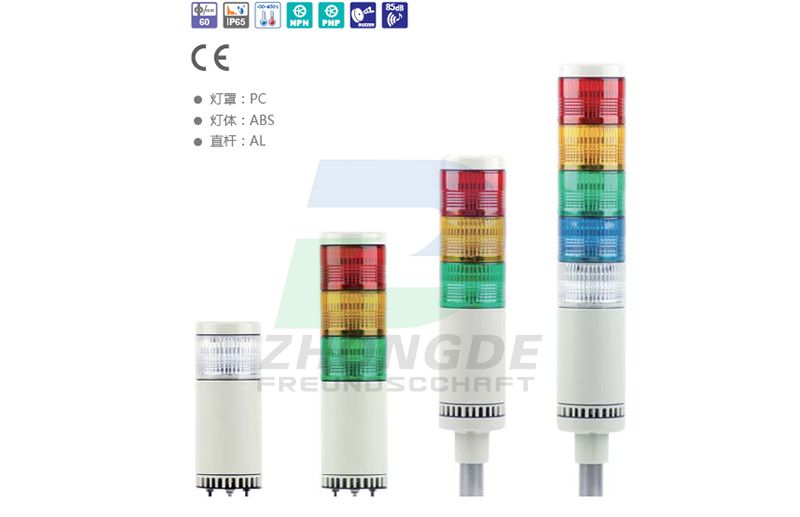

Multi-layer warning light
ZDe/50 Series
This series of warning lights diameter 50mm, medium size, for most equipment and power distribution equipment. With a variety of bases to meet a variety of installation conditions. The lamp bead lamp housing structure can be changed to meet various combinations for easy maintenance

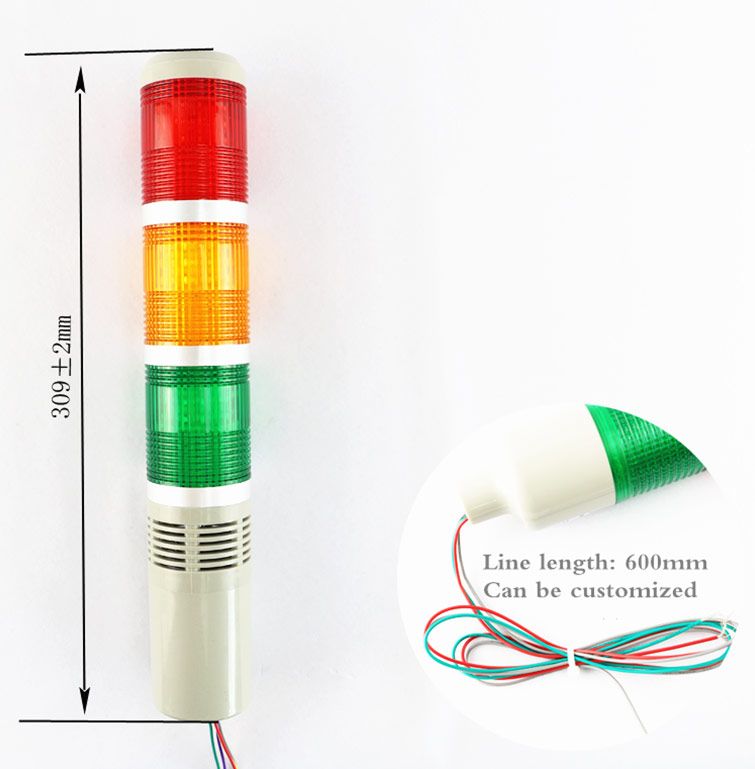

Line length
Customizable
| Product Parameter | |||
| Product Name | Multi-layer warning lamp | Brand | Shandong Zhongde Machine Tool Accessories Co., Ltd |
| Product Model | CTL50-3TJ-D | Trademark | CARTAY |
| Way of Working | Constantly Bright | Number of Layers | Three Layers |
| Flashing Frequency | This one does not blink | Color | Red/Green/Yellow |
| Ambient temperature | -30℃~+60℃ | Voltage | DC12/DC24/AC110/AC220 (Optional) |
| Protection level | IP23 | Light Source | Taiwan Epistar LED |
| Buzzer decibel | ≤90dB | Material | Lampshade:PC Base:ABS |
| Buzzer sound | Drop~ Continuous sound（Customizable intermittent sound） | Power | Lamp 0.06A/layer Buzzer 0.03A |

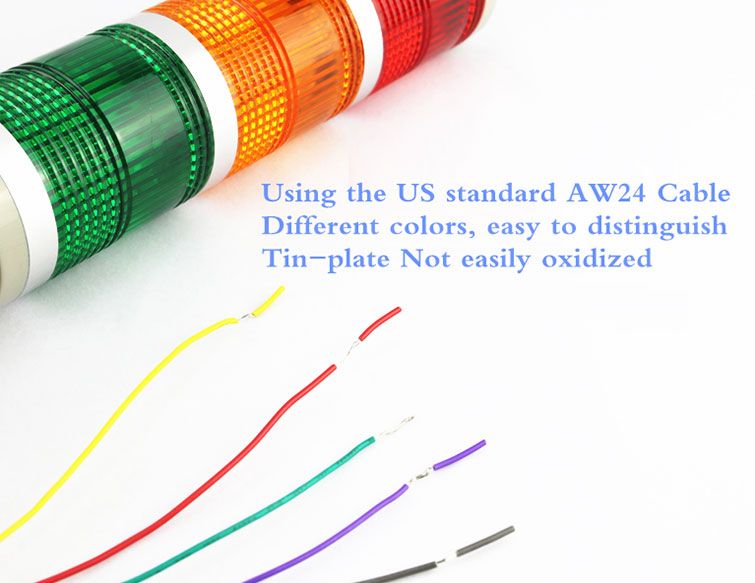

| Signal Line Specification | 24AWG/0.2mm2（Each root） | Certification | CE |

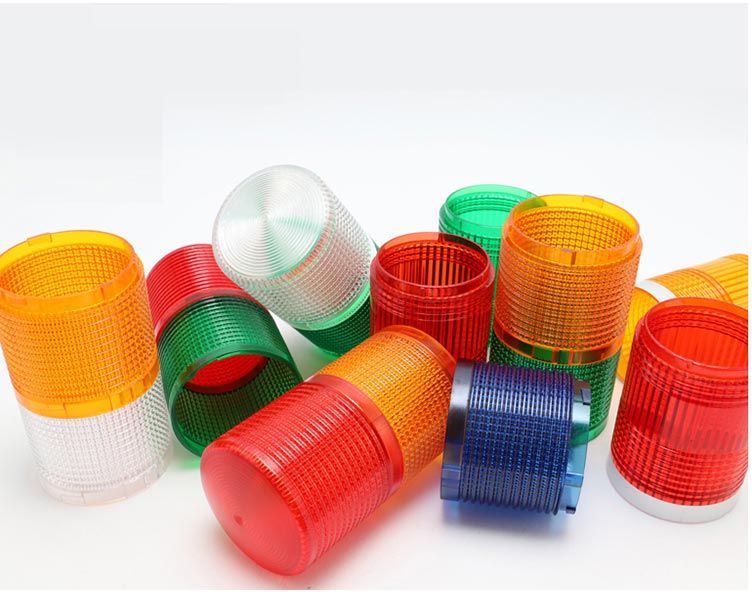

Made of heat-resistant polycarbon PC raw material
Not easily deformed
High and low temperature resistance
Bright colors

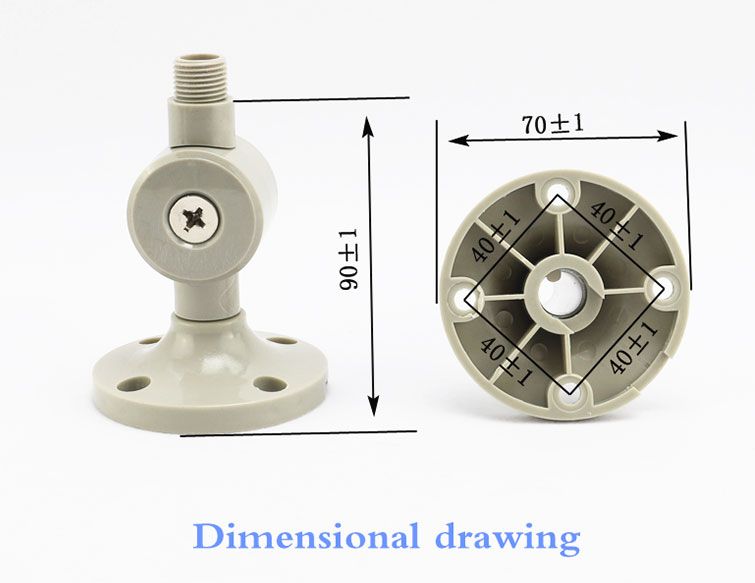

Detailed Drawing

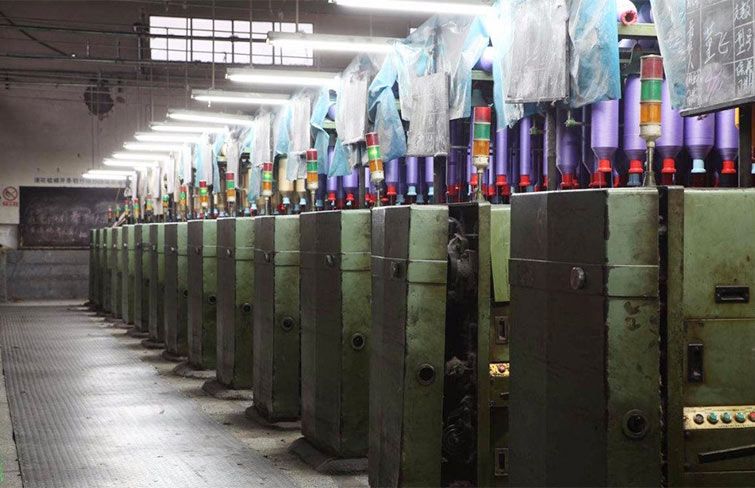

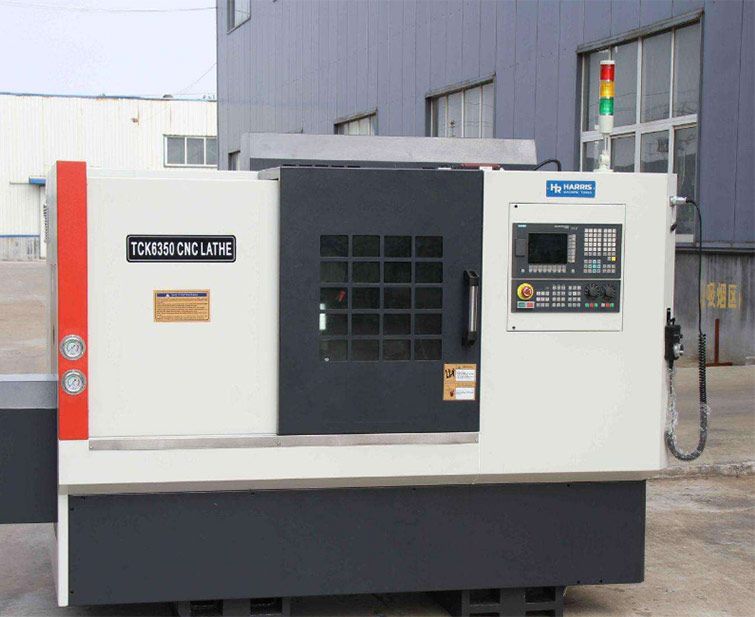

Application
Our Advantages
1. Our products are supplied to top manufacturer of many fields in China.
2. We have rich experiences about 15 years on production of chip conveyor and steel cable drag chain.
3. We have professional after-sales service team which can help our clients to get success.
4. We can supply customization and OEM service.
5. Our products have been exported to Europe,US,South Africa,Southeast Asia,Middle East and other places.
Any purchase plan or inquires, please kindly send us the technical specifications, we will give you our best quotation for your reference. Please contact Helen Li via Email: sales@zhongdechina.com or Wechat: +86 159 5378 0008.
