Magnetic Roller Paper Band Filter

Principle

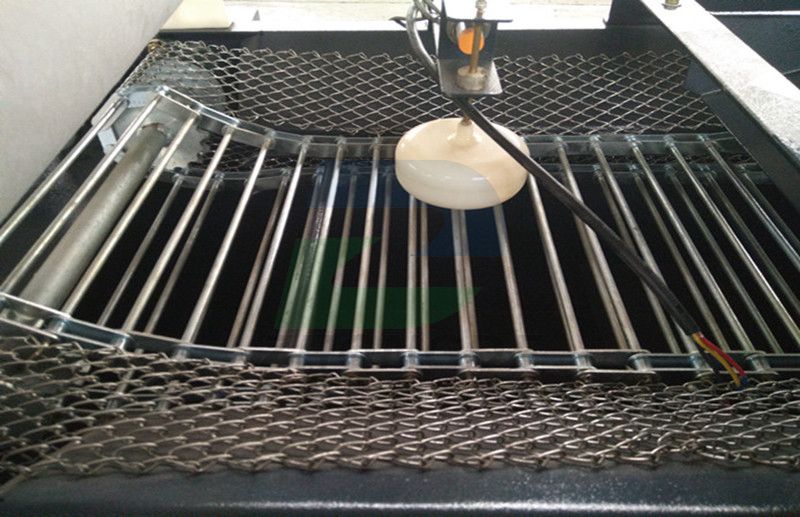

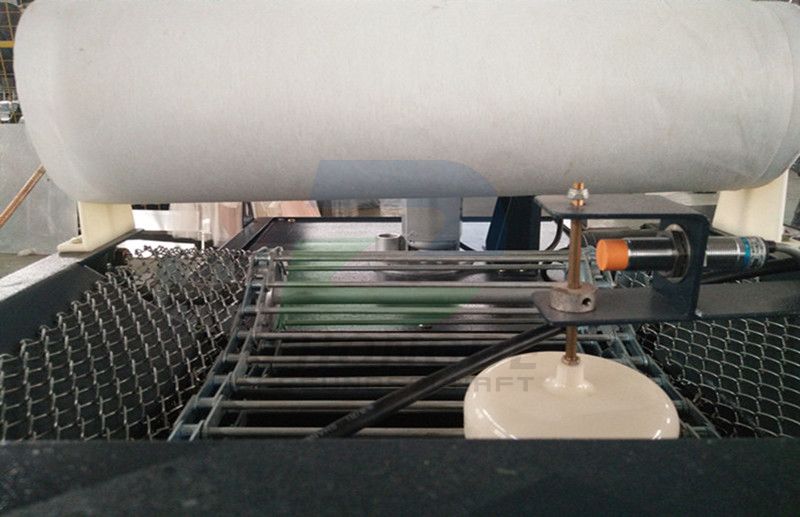

The tape filter relies on the gravity of the liquid itself to filter the cloth and isolate the debris to achieve the purpose of purifying the liquid. The chain and the wire mesh of the transmission mechanism form a certain depth of the liquid pool, and the filter cloth is laid on the chain and the wire mesh. When the dirty liquid carrying impurities flows through the water flow buffer device to the non-woven fabric during operation, the impurities are separated by the filter cloth to form a filter cake, the filter cake becomes thicker and thicker, the liquid level of the dirty liquid rises, and the floating liquid level controller sends a message. The speed reducer starts, drags the filter cloth, and the dirt and dirty cloth fall into the dirty carton, thereby realizing the automatic replacement of the filter cloth; after the filter cloth is updated, the liquid level of the dirty liquid drops, the speed reducer stops rotating, and the machine enters the next filtration cycle. The filtered pure liquid is delivered to the main unit by a liquid pump.

Feature

a. Fast filtering;

b. Continuous filtering operation.

Function

a. Coolant filtration;

b. Remove impurities;

c. Purifying liquid.

Application

Tape filter for coolant filtration in metal grinding or other processing, as well as cleaning of cleaning fluids, industrial water, organic solutions and other solutions in the blank cleaning system.
