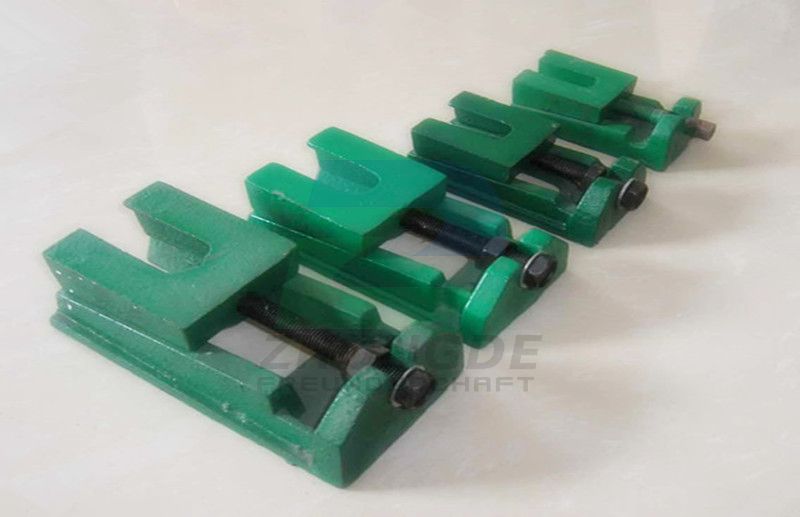

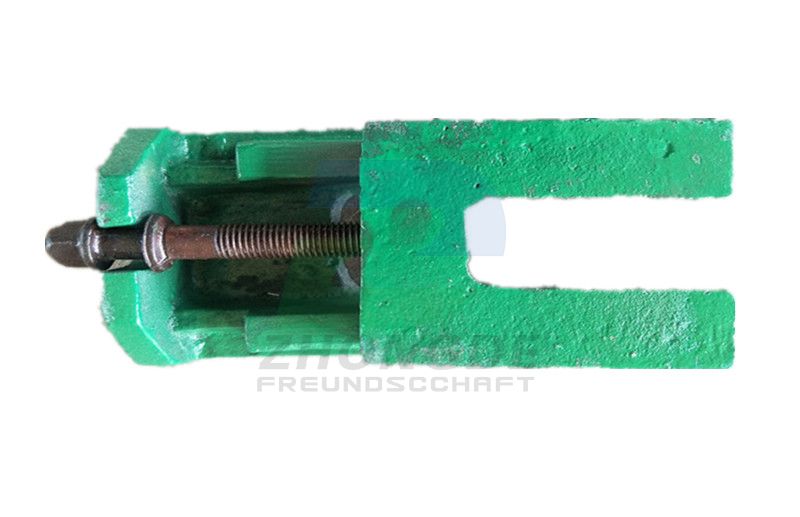

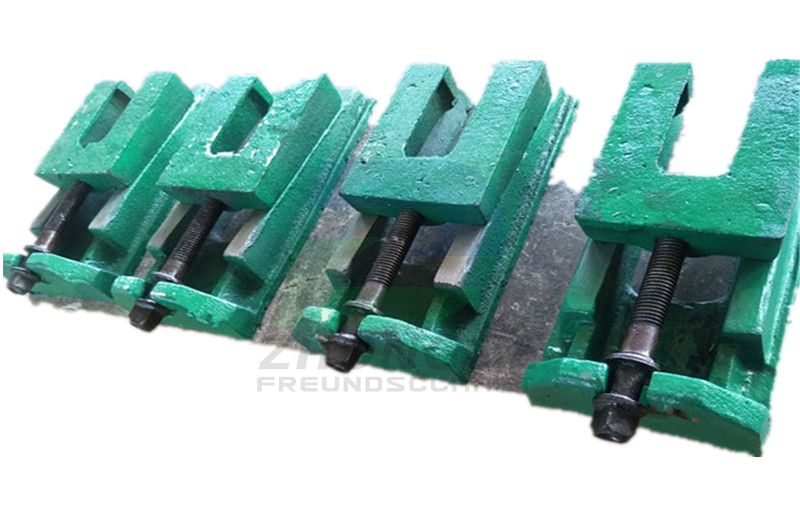

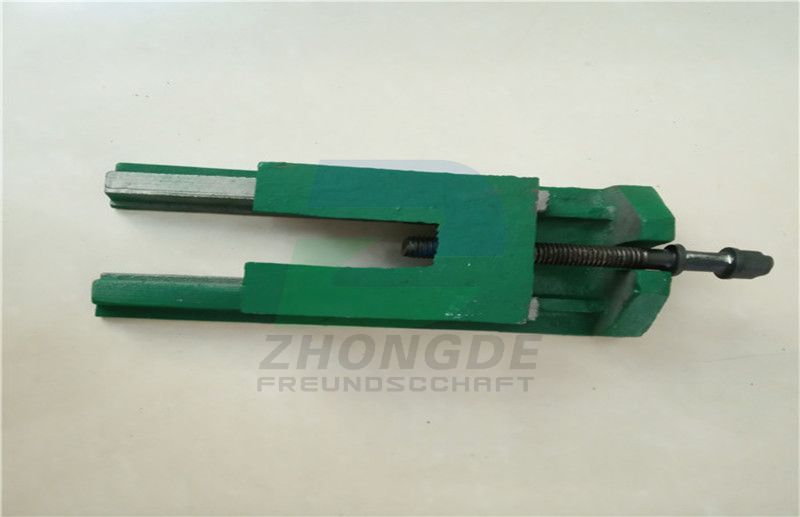

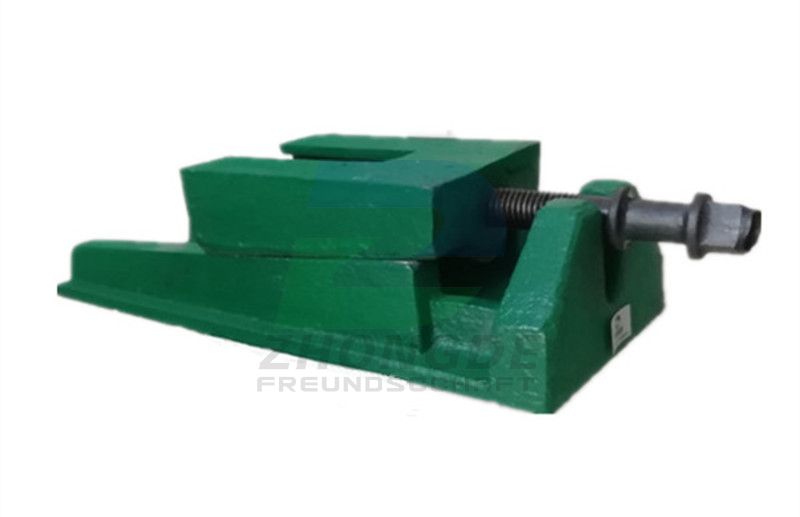

Wedge Mount Machine Feet
The characteristics of the Wedge Mount Machine Feet products
The damping rubber effectively attenuates the vibration of the machine itself, reduces the transmission of vibration force, prevents the transmission of vibration force, and ensures the dimensional accuracy and quality of the processing. Control the building structure resonance propagation vibration force and noise. Make coarse and fine processing all kinds of machine tools into production units to adapt to the development of logistics technology. The machine tool installation does not need to set anchor bolts to the ground, good vibration reduction and considerable vertical deflection, so that the machine is stable on the ground. Save installation costs and shorten installation cycle. The position of the machine can be changed at any time according to the production, eliminating the cost of secondary installation and making the installation of the machine upstairs possible. The anti-vibration horn can adjust the level of the machine tool, and the adjustment range is large, convenient and fast. The anti-vibration pad is made of synthetic rubber, grease and coolant.
product details
The use of the Wedge Mount Machine Feet
Place the adjusting horns under the force points of the machine, and apply the force to each horn, then adjust the horn. The adjustable height is 3mm--15mm. The cast iron adjustment horn is easy to adjust and flexible to move. It does not need to bury the anchor screws and does not damage the ground. It is a major reform of the machine tool installation process. It can improve the dynamic characteristics of the same bed, improve the machining accuracy of the machine, and has the functions of shockproof and noise reduction. Labor saving, time saving, material saving, and comprehensive economic benefits. For the design department, the contradiction caused by the difficulty in selecting equipment and the ground foundation cannot be determined. Wide versatility, suitable for installation of various types of machine tools and equipment.
The scope of the Wedge Mount Machine Feet
Metal processing machines, forging machines, textile machinery, printing machinery, food processing machinery, rubber machinery, wire manufacturing machinery, cable machinery, packaging machinery, generators and heavy equipment. How to use the machine to adjust the horn: Put the required horn into the hole of the machine tool, insert the bolt, screw it into contact with the load-bearing plate, and then adjust the machine level (the bolt rotates clockwise, the machine rises); After the machine is level, tighten the nut to a fixed level. Because of the creep of the rubber, the machine level is adjusted two weeks later when the horn is used for the first time.
Selection Table
| Model | Diameter Size (mm) | Screw Thread | Single Piece Bear Load (kg) |
| 1 | 160*80*60 | M14 | 1000 |
| 2 | 200*100*55 | M16 | 1500 |
| 3 | 240*120*65 | M18 | 2500 |
| 4 | 260*120*80 | M18 | 2700 |
| 5 | 300*150*100 | M20 | 4500 |
| 6 | 350*180*100 | M24 | 4500 |
| 7 | 400*200*120 | M30 | 7500 |
Packaging of the Wedge Mount Machine Feet
Strong plywood wooden crates.
Delivery
We support Ocean shipping and Air transport, Convenient and fast!
Our Advantages
1. Our products are supplied to top manufacturer of many fields in China.
2. We have rich experiences about 15 years on production of CNC Machine Tool Accessories.
3. We have professional after-sales service team which can help our clients to get success.
4. We can supply customization and OEM service.
5. Our products have been exported to Europe,US,South Africa,Southeast Asia,Middle East and other places.
Any purchase plan or inquires, please kindly send us the technical specifications, we will give you our best quotation for your reference. Please contact Helen Li via Email: sales@zhongdechina.com or Wechat: +86 159 5378 0008.
Product Name : Wedge Mount Machine Feet
