Gray Damping Machine Mount
Machine tool Damping Machine Mount:
The damping rubber can effectively attenuate the vibration of the machine itself, reduce the vibration force transmission, prevent the transmission of the vibration force, and ensure the dimensional accuracy and quality of the processing. Control building structures to propagate vibrational forces and noise. Make coarse and fine processing all kinds of machine tools into production units to adapt to the development of logistics technology. The machine tool installation does not need to set anchor bolts to the ground, good vibration reduction and considerable vertical deflection, so that the machine is stable on the ground. Save installation costs and shorten installation cycle. The machine position can be changed at any time according to the production, eliminating the cost of secondary installation and making the installation of the machine upstairs possible.
product details
Feature of Machine Mount：
1. Machines are stationary on floor without anchors. Therefore the cost and time of installation can be greatly saved.
2. The layout of machines can be changed freely according to the modification of manufacturing process. So it is easy to design the flexible production line.
3. It is convenient and quick to adjust the level of machine.
4. Vibration and noise can be reduced and isolated by using this product.
5. It can resist oil and corrosion greatly.

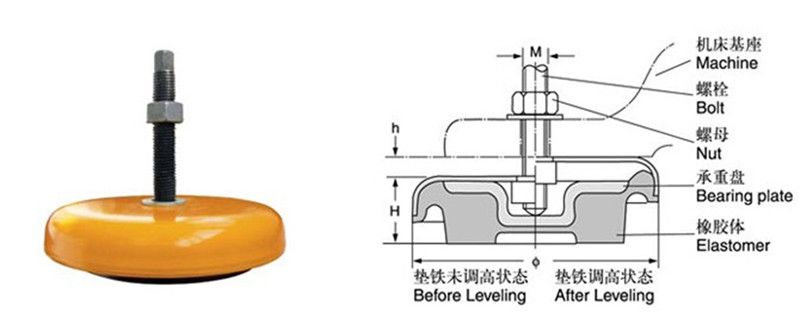

Installation method：
1. Lift the machine and put the horn in place；
2. Insert the bolt into the horn through the machine mounting hole and lower the machine tool onto the horn;
3. Turn the bolt clockwise to adjust the level of the machine and ensure that each horn bolt must be stressed;
4. When the machine is leveled, lock it with a nut.
Specification Table：
| S78-10 Series Damping Machine Mount | |||||||
| Model | S78-10-01 | S78-10-02 | S78-10-03 | S78-10-04 | S78-10-05 | S78-10-06 | S78-10-07 |
| Outer Diameter(mm) | 40 | 80 | 120 | 160 | 185 | 229 | 317 |
| Thread(mm) | M5 | M10 | M12 | M16 | M20 | M24*1.5 | M30*2 |
| Bolt Length(mm) | 30 | 80 | 100 | 120 | 130 | 180 | 200 |
| Base Height(mm) | 15 | 25 | 32 | 35 | 39 | 54 | 70 |
| Adjustable Height(mm) | 5 | 8 | 12 | 12 | 12 | 12 | 12 |
Video Show:
Our Advantages
1. Our products are supplied to top manufacturer of many fields in China.
2. We have rich experiences about 15 years on production of Chip Conveyor and Steel Cable Drag Chain.
3. We have professional after-sales service team which can help our clients to get success.
4. We can supply customization and OEM service.
5. Our products have been exported to Europe, US, South Africa, Southeast Asia, Middle East and other places.
Any purchase plan or inquires, please kindly send us the technical specifications, we will give you our best quotation for your reference. Please contact Helen Li via Email: sales@zhongdechina.com or Wechat: +86 159 5378 0008.
Product Name : Gray Damping Machine Mount
