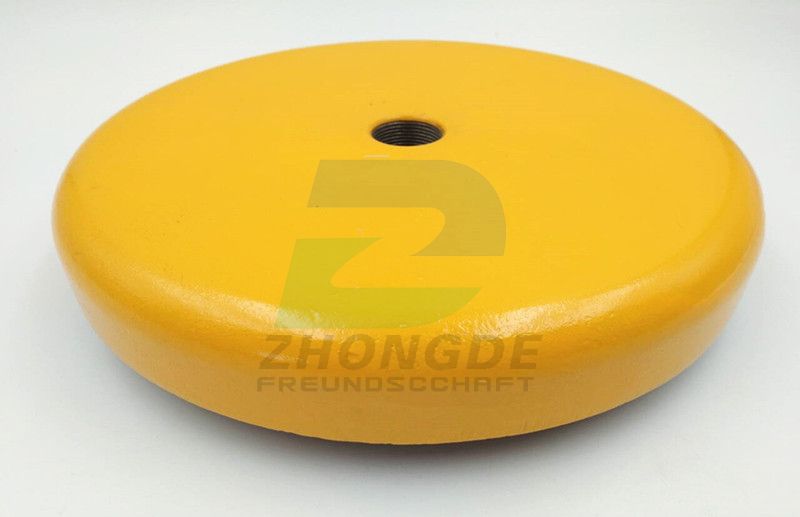

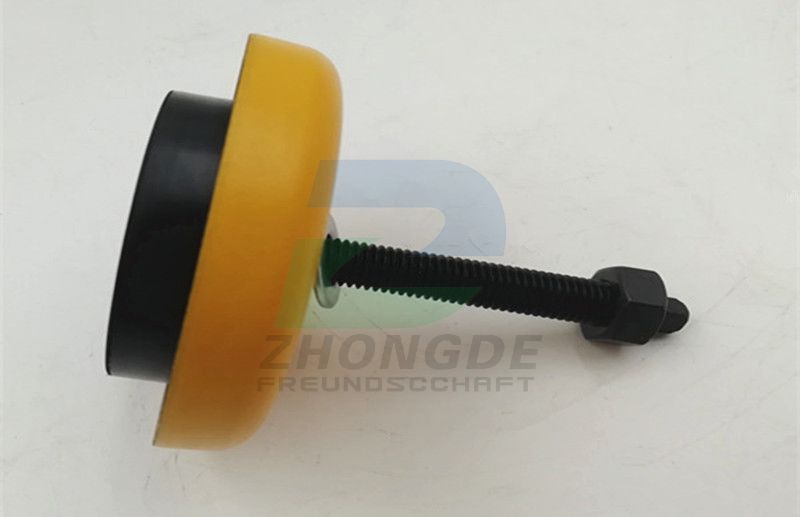

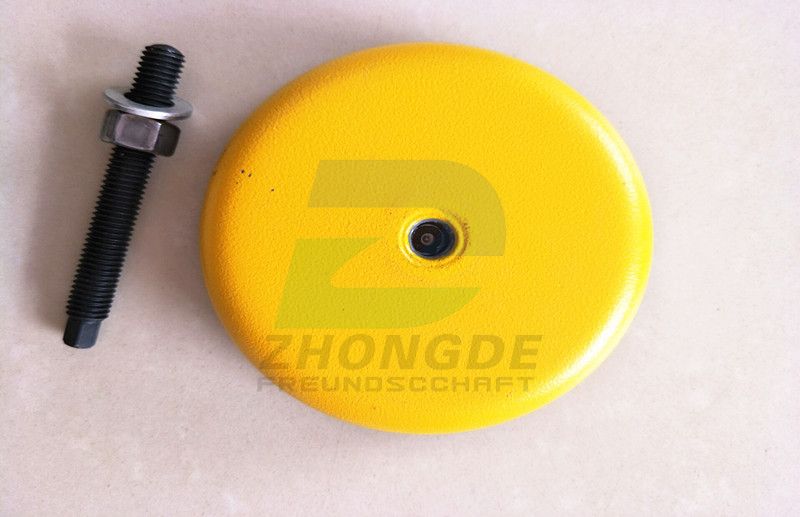

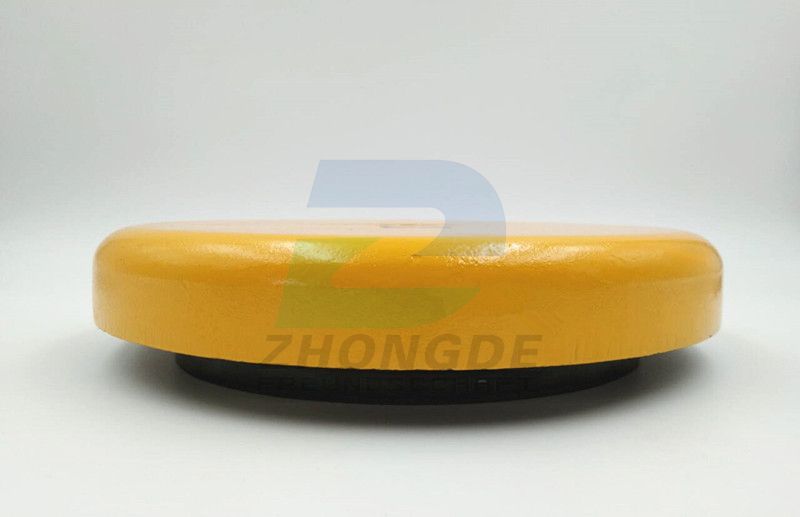

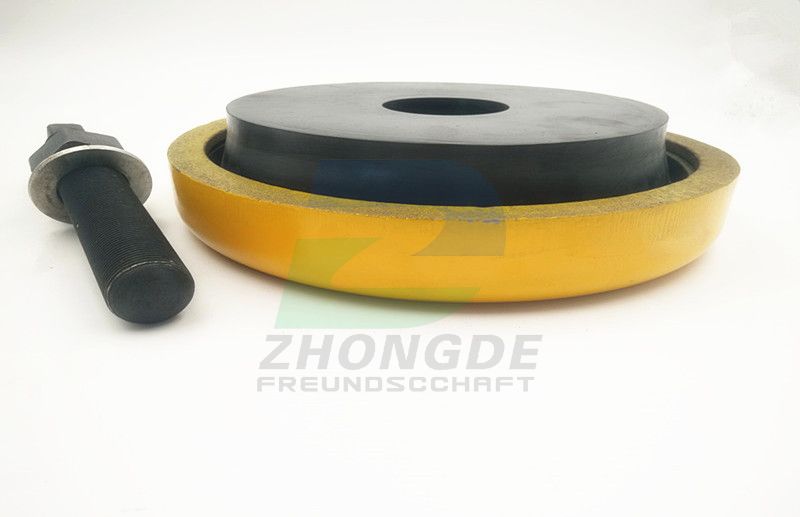

Damping Machine Mount

Damping Machine Mount Features:

The damping rubber can effectively attenuate the vibration of the machine itself, reduce the vibration force transmission, prevent the transmission of the vibration force, and ensure the dimensional accuracy and quality of the processing. Control building structures to propagate vibrational forces and noise. Make coarse and fine processing all kinds of machine tools into production units to adapt to the development of logistics technology. The machine tool installation does not need to set anchor bolts to the ground, good vibration reduction and considerable vertical deflection, so that the machine is stable on the ground. Save installation costs and shorten installation cycle. The machine position can be changed at any time according to the production, eliminating the cost of secondary installation and making the installation of the machine upstairs possible.

Inquire Now Next Product

product details

Damping Machine Mount principle:

Damping Leveling Feet can effectively attenuate the vibration of the machine itself, ensuring the dimensional accuracy and quality of the machining. Installation of the machine using the machine to adjust the horn can be fixed without the anchor bolts and the ground, good vibration damping and considerable vertical deflection, so that the machine is stable on the ground. The Damping Leveling Feet can maintain the level of the machine tool, and the adjustment range is large, convenient and fast. Sino-German company specializes in producing all kinds of machine mattress iron, available in stock, welcome to order!

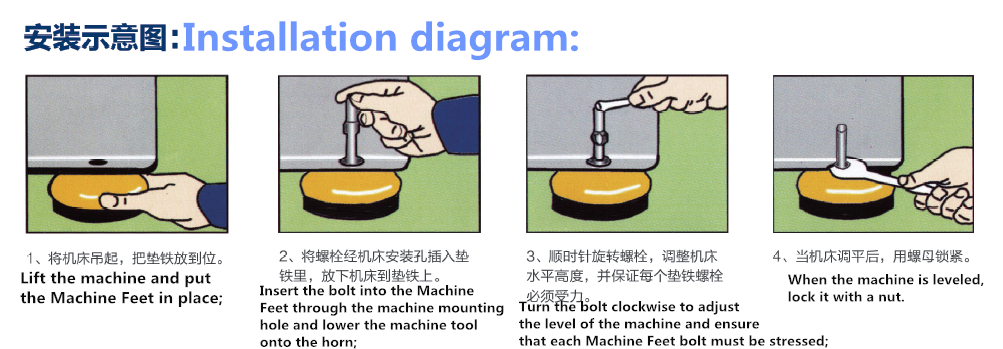

How to use the shock absorbing iron:

Put the required horn into the hole of the machine tool, insert the bolt, screw it into contact with the load-bearing plate, and then adjust the machine level (the bolt rotates clockwise, the machine rises). After adjusting the machine level, tighten the nut and fix the horizontal state. Because of the creep of the rubber, the machine level is adjusted two weeks later when the horn is used for the first time.

Damping Leveling Feet

Product Video:
