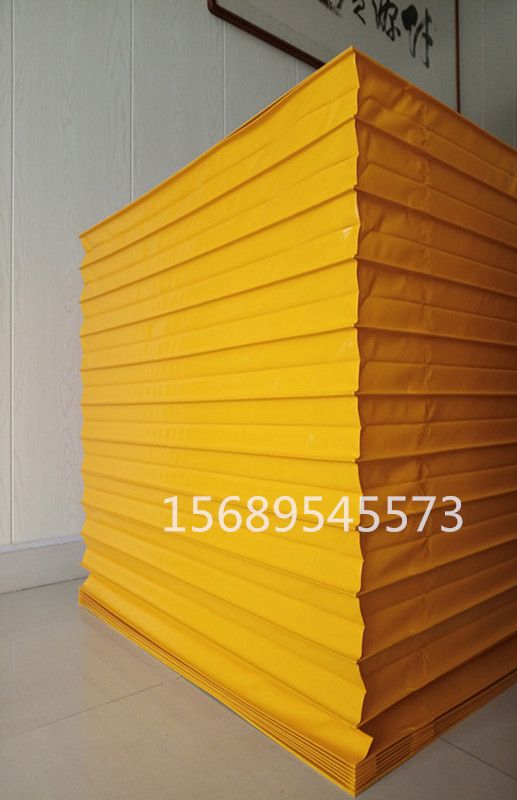

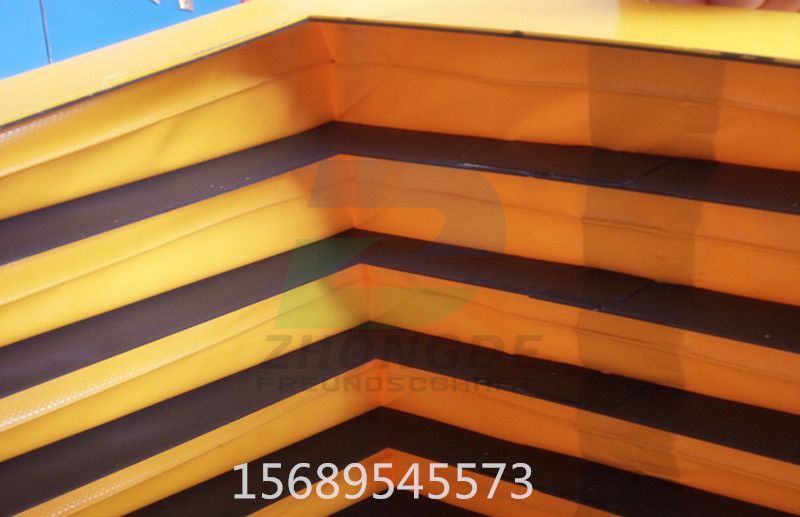

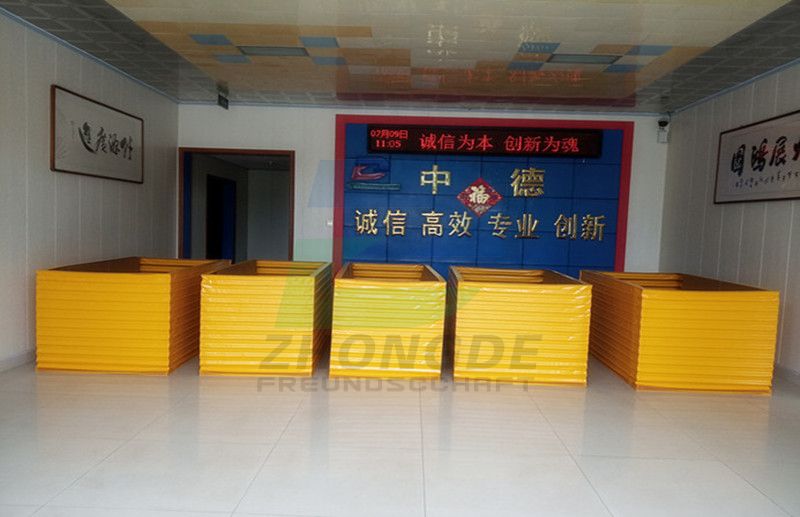

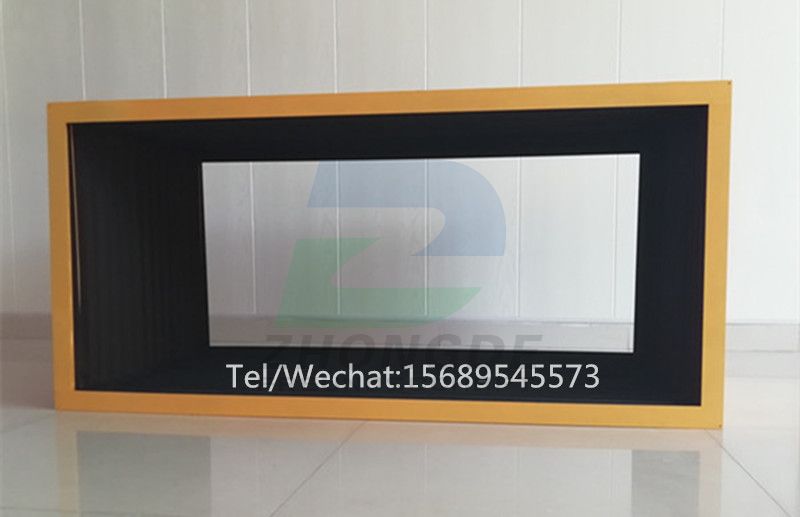

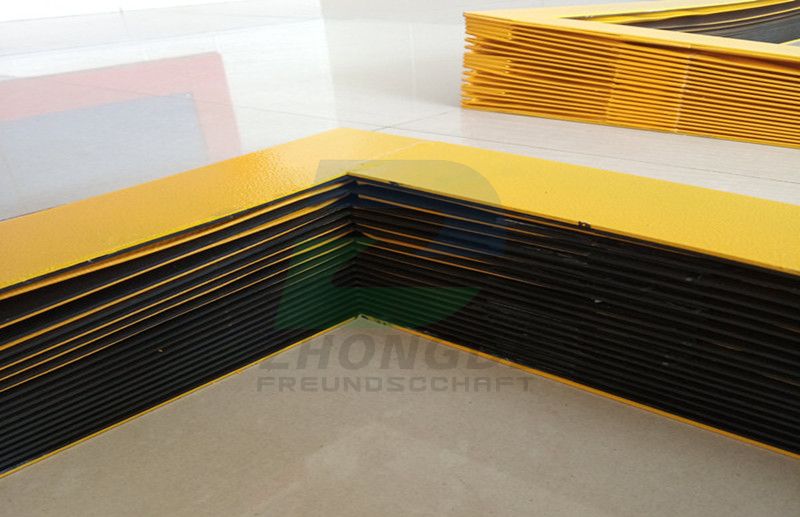

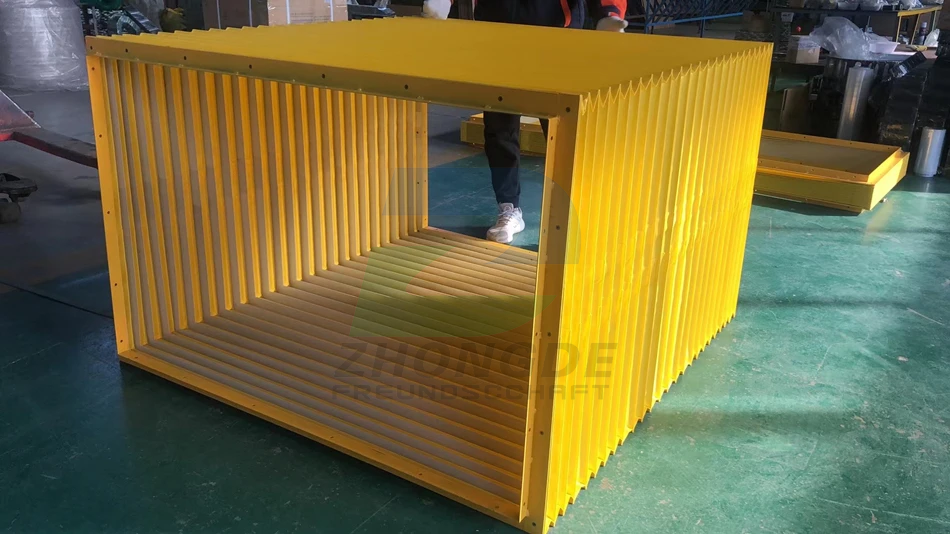

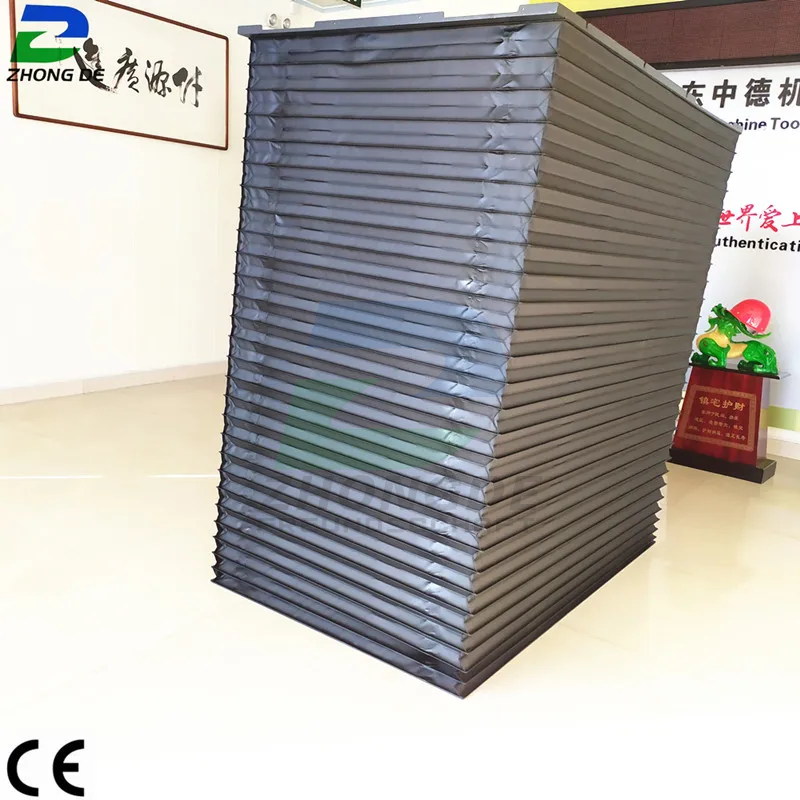

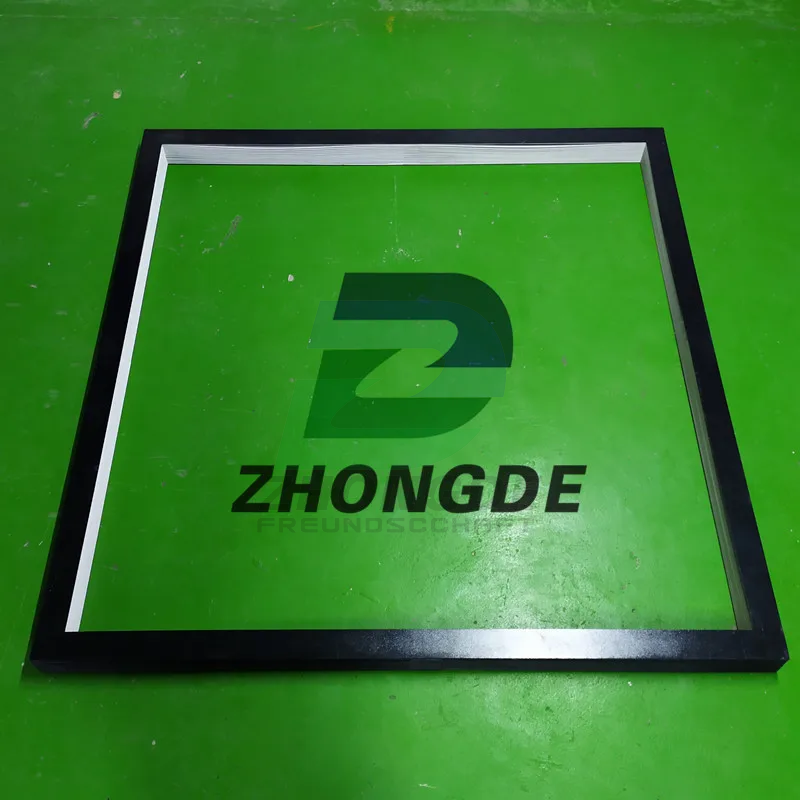

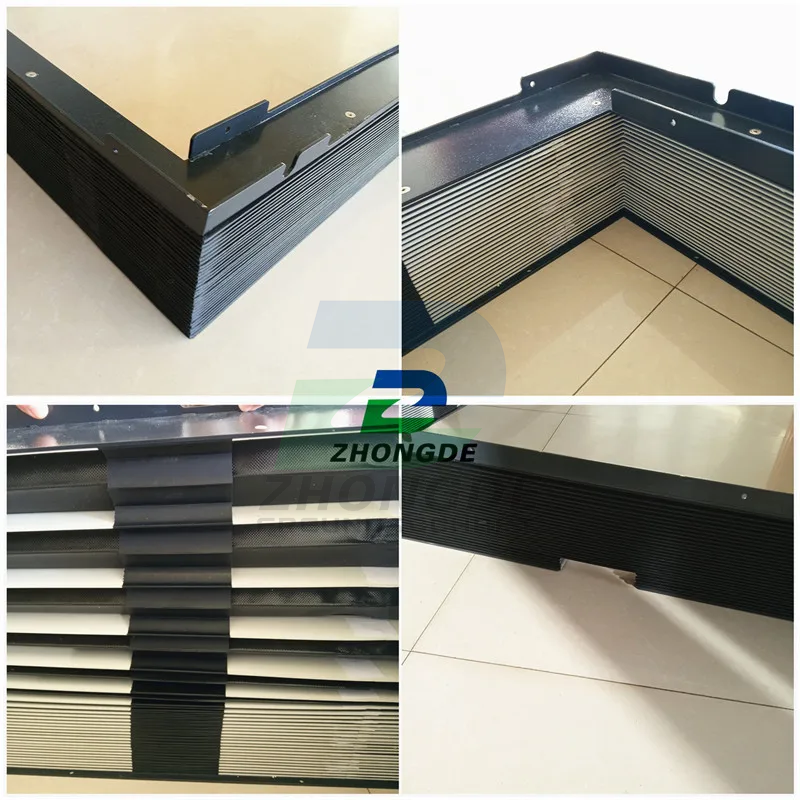

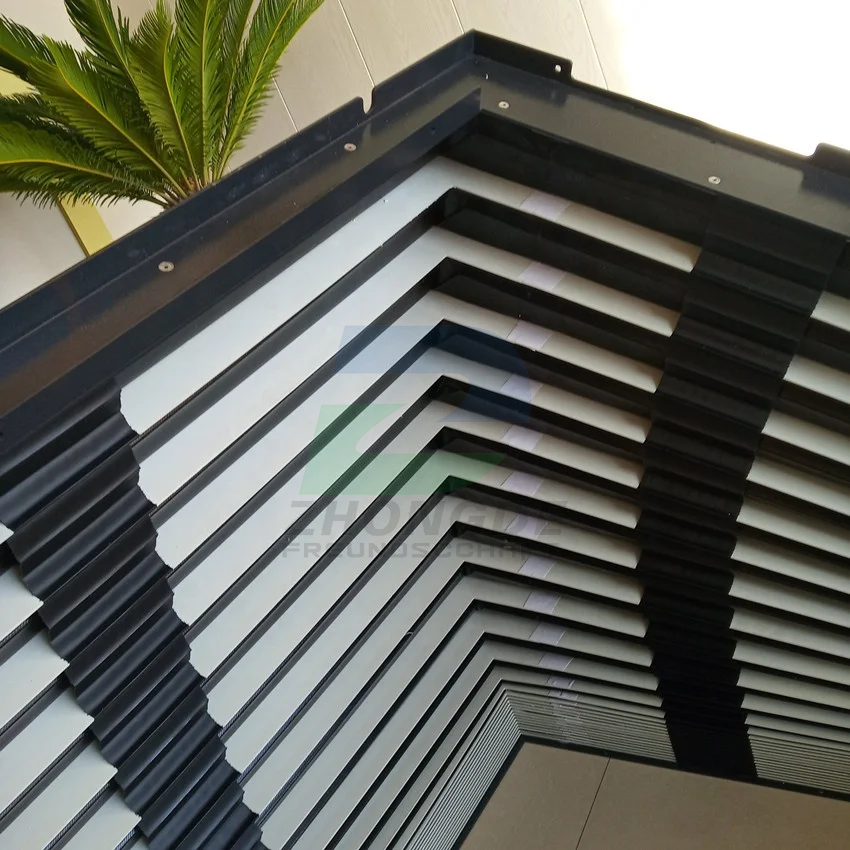

Lift Table Bellows Cover
Shandong Zhongde large-scale lifting platform guide cover has the characteristics of tight structure, reasonable, no noise, large stroke, fast movement and long service life. Widely used in ordinary machine tools, CNC machine tools, hydraulic machinery and other equipment. The operating environment of our organ shield equipment can be made into a steel support skeleton, a wooden skeleton, a PVC skeleton, a cold skeleton skeleton organ shield and the like. According to the operating environment of the equipment, the internal structure of the organ shield has groove type, roller, nylon slide, slider, lacing, tension spring and nylon shaft.
product details
Structure:
Shandong Zhongde Lift Table Bellows Cover is a product series that can be combined arbitrarily. The raw materials, shape, processing method and size can be determined according to actual conditions. One of its basic components is to have a PVC skeleton that supports the stabilizing effect in each of the hinges. The skeleton can be closely connected to the external folding material by different processing methods.
Feature:
1. This type of shield has the characteristics of not being afraid of foot, hard object collision, deformation, long life, good sealing and light operation;
2. the organ type protective cover has a long stroke, small compression, and the ratio of the length is 1:10;
3. The distance between the guide surface of the mechanical equipment and the shield is at least 5 mm and the maximum is 10 mm;
4. the size of the cover when the fold is opened is equal to twice the height of the fold, the thickness of the compressed fold is 4mm;
5. standard folding height: 15mm, 20mm, 30mm, 35mm, 40mm, 45mm, 50mm;
6. the product uses special materials, resistant to coolant, oil, sand and iron, etc.;
7. The protective cover has the advantages of long stroke and small compression;
8. The bellows speed of the shield can reach 200m/min;
9. There are no metal parts in the shield. Don't worry that the parts will loosen when the cover is working and cause serious damage to the machine.
Function:
Shandong Zhongde lift table bellows are available to suit many models of lift tables and tilters. Accordion lift table guards are designed to minimize debris entry under the lift table. Keeping the debris out reduces the maintenance and housekeeping tasks at the work station. The potential for damage to the lift table and the associated downtime is significantly reduced if debris is prevented from coming in contact with the moving scissor assemblies, leg rollers and power unit.
Application:
Shandong Zhongde Lift Table Bellows Cover is widely used in ordinary machine tools, CNC machine tools, hydraulic machinery and other equipment.
Video Show:
Our Advantages
1. Our products are supplied to top manufacturer of many fields in China.
2. We have rich experiences about 15 years on production of Bellows Cover.
3. We have professional after-sales service team which can help our clients to get success.
4. We can supply customization and OEM service.
5. Our products have been exported to Europe, US, South Africa, Southeast Asia, Middle East and other places.
Any purchase plan or inquires, please kindly send us the technical specifications, we will give you our best quotation for your reference. Please contact Helen Li via Email: sales@zhongdechina.com or Wechat: +86 159 5378 0008.
Product Name : Lift Table Bellows Cover
